For other manufacturers, see the Microdrive History .
There have been several different announcements, but only a few actual products. First, the harddisks were announced as 2.4GB and 4.8GB, then as 2.2GB and 4.4GB with CF (1022C/1044C), ATA/IDE (1022A/1044A) and USB 2.0 (1022U/1044U) interfaces. There is also product roadmap available, aiming at 16-20GB for end of 2005.
Most likely, only 2.2GB, 3.3GB and 4.0GB versions have been released:
I can confirm the two 2.2GB CF models and the 2.2GB ATA/IDE model.
The disk identifies as "GS-Magicstor 1022C 10384j13", ATA Type 848A (CF, Standard). The reported size is 2,130,593,280 Bytes (2031MB, 1.984GB) with 4,161,315 Sectors. The size can't be mapped to regular CHS values, the reported mapping is CHS=4128/16/63 with only 4,161,024 Sectors usable (291 Sectors unused). Supported ATA modes are PIO-2 and MDMA-2.
| |

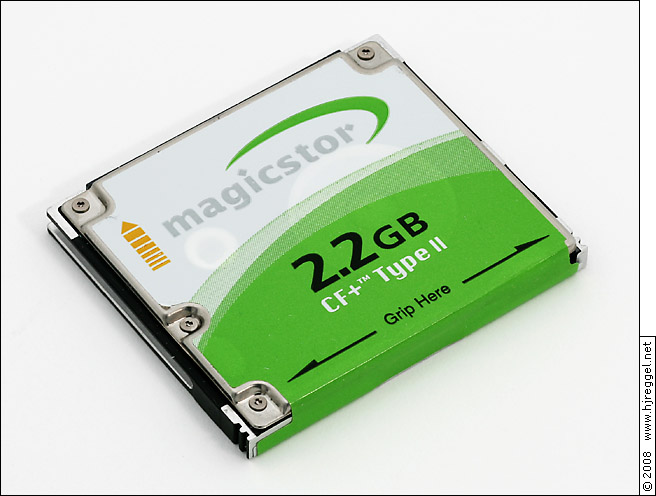

| GS Magicstor 2.2GB CF GS1022C, Top |
 | |

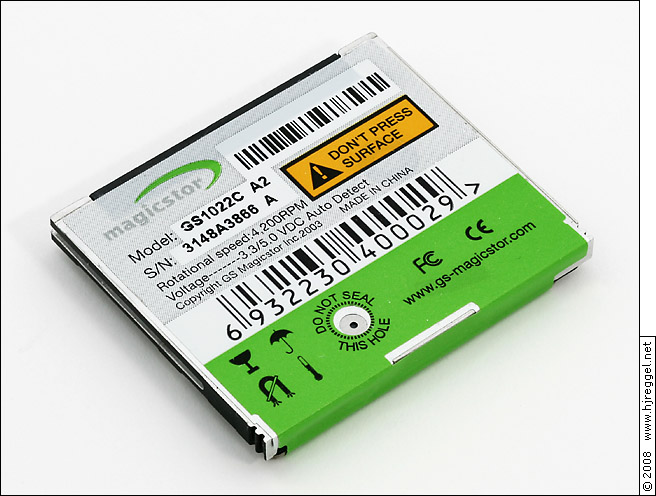

| GS Magicstor 2.2GB CF GS1022C, Bottom |
The disk identifies as "GS-Magicstor 1022A 22284d24", ATA Type 0040 (ATA, Fixed Media, Fixed Device). The reported size is 2,147,483,136 Bytes (2047MB, 1.999GB) with 4,194,303 Sectors. The size can't be mapped to regular CHS values, the reported mapping is CHS=4161/16/63 with only 4,194,288 Sectors usable (15 Sectors unused). Supported ATA modes are PIO-4, MDMA-2 and UDMA-4.
 | |

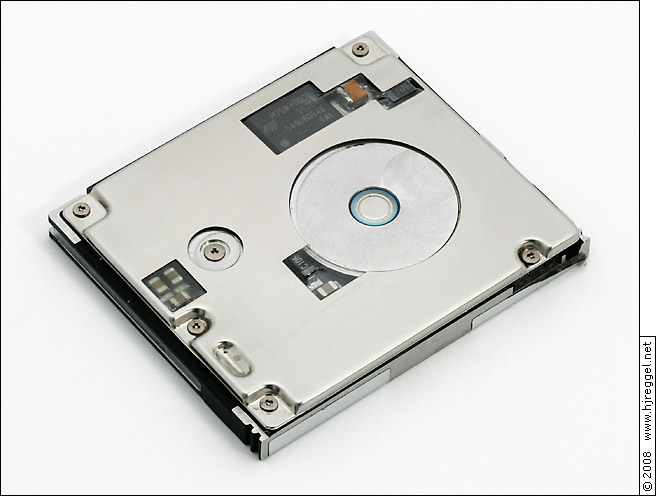

| GS Magicstor 2.2GB ATA/IDE GS1022A, Top |
 | |

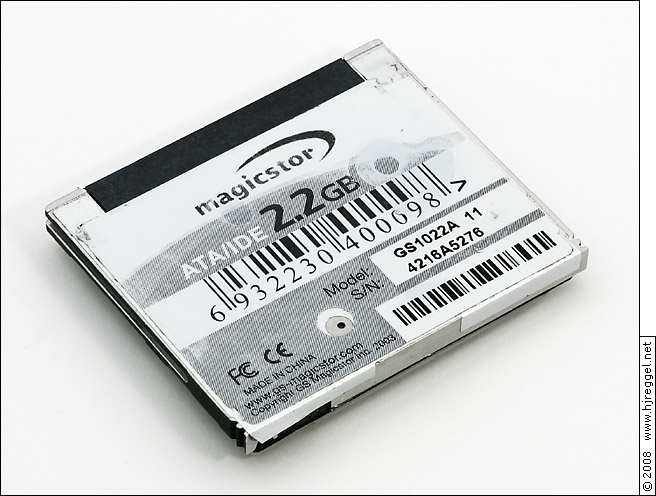

| GS Magicstor 2.2GB ATA/IDE GS1022A, Bottom |
