Test Details for Reader
CompuApps UDMA�Sample

Brand:	CompuApps
Model:	Omniflash USB 2.0 UDMA 40 UnoCF
Info:	OM-U2-CFU4

Photos and test data are taken from a sample.
See also: Photos/Test Data of the Retail Version.

CompuApps UDMA�Sample	c't h2benchw			c't h2benchw			hjreggel cardcheck
xSil251:2.22	read [MB/s]			access [ms]			read			write
Card	min.	max.	avg.	min.	max.	avg.	avg. [MB/s]	150 kB/s	chk	avg. [MB/s]	150 kB/s	chk	Comment
SanDisk CF Extreme IV 4GB	30.37 ~	31.04	30.97	0.49 ~	1.10	0.68	30.92	211.0�	OK	22.91	156.4�	OK
SanDisk CF Extreme III 1GB	18.44 ~	18.53	18.50	0.60 ~	1.26	0.80	18.48	126.1�	OK	17.50	119.4�	OK
Transcend CF 120x 8GB	16.61 ~	18.53	18.24	0.48 ~	4.00	0.94	18.26	124.6�	OK	12.55	85.7�	OK
SanDisk CF Ultra II 2GB	10.89 ~	11.81	11.58	0.61 ~	12.63	10.64	11.25	76.7�	OK	8.95	61.1�	OK
Transcend CF 80x 4GB	10.35 ~	10.64	10.52	0.49 ~	2.37	1.74	10.46	71.3�	OK	10.59	72.2�	OK
Transcend CF 45x 4GB	8.04 ~	8.19	8.15	0.52 ~	1.61	1.22	8.16	55.7�	OK	5.91	40.3�	OK
RiData CF 52x 2GB	6.55 ~	6.57	6.57	0.55 ~	1.62	1.19	6.57	44.8�	OK	5.39	36.8�	OK
Transcend CF 30x 1GB	4.78 ~	5.43	5.42	0.61 ~	1.50	1.06	5.38	36.7�	OK	4.59	31.3�	OK
RiData CF 25x 512MB (1)	4.97 ~	5.00	4.99	0.74 ~	1.50	1.12	4.95	33.7�	OK	2.86	19.4�	OK
RiData CF 25x 512MB (2)	4.98 ~	5.00	4.99	0.63 ~	1.50	1.12	4.98	33.9�	OK	2.99	20.4�	OK
Transcend CF 25x 512MB (1)	4.98 ~	5.00	4.99	0.72 ~	1.62	1.12	4.95	33.7�	OK	2.90	19.8�	OK
Transcend CF 25x 512MB (2)	4.98 ~	5.00	4.99	0.63 ~	1.51	1.12	4.94	33.7�	OK	3.02	20.6�	OK
Lexar CF 8x 16MB (2) 2177A	2.65 ~	2.65	2.65	0.62 ~	1.01	0.75	2.61	17.8�	OK	1.30	8.9�	OK
SanDisk CF 16MB (2002)	1.95 ~	1.96	1.96	1.87 ~	2.40	2.00	1.96	13.3�	OK	0.87	5.9�	OK
Toshiba 1.8" HD 5GB	5.38 ~	8.70	7.99	6.37 ~	37.63	21.16	7.67	52.3�	OK	7.96	54.3�	OK
Hitachi MD 4GB (MuVo�)	3.65 ~	6.94	5.29	0.50 ~	38.37	20.13	5.32	36.3�	OK	2.18	14.8�	OK
IBM MD 1GB	2.46 ~	4.31	3.55	5.37 ~	39.25	21.47	3.56	24.2�	OK	1.79	12.2�	OK

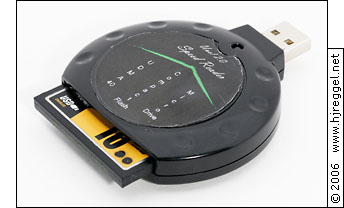

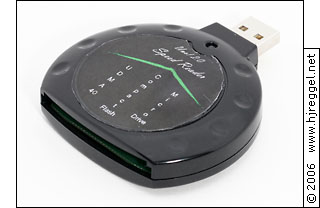

This photo is taken from a sample.
The final version might look a little different.
